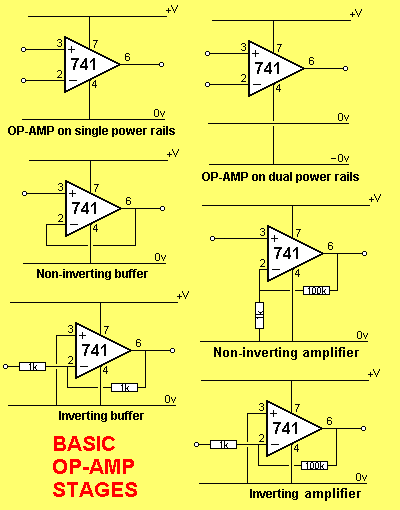

LM 741
The LM 741 is a single OP-AMP in an 8-pin chip.
It is the most widely-used op-amp in the world.
It can operate from a single 9v supply or up to +18v/-18v (741C).
As the frequency increases, the maximum gain decreases. Unity gain occurs at 1.5MHz.
|
